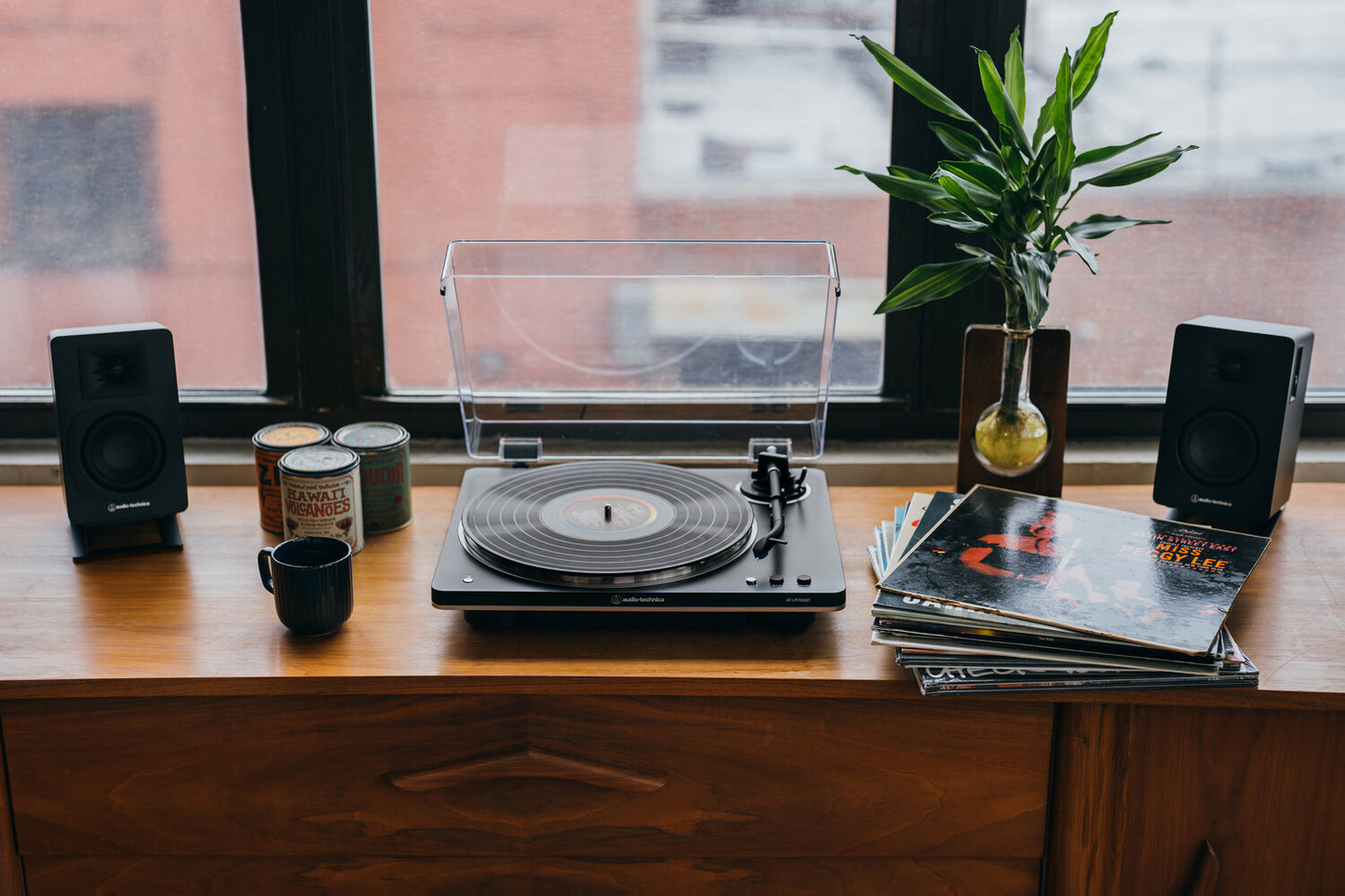

Audio Technica AT-LP70XBT-BS Turntable

The AT-LP70XBT fully automatic wireless belt-drive turntable is designed for budding vinylphiles – those who love sitting back with the album art in hand to enjoy warm, analog music as the artist intended. Added Bluetooth® wireless technology gives you the option to listen to your vinyl over Bluetooth-enabled speakers, headphones, or other devices, including those that support the high-quality Qualcomm® aptX™ Adaptive audio codec.

Arguably, the most important component for generating high-fidelity audio from vinyl is a quality phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 60 years, and we’ve drawn on that expertise to create a versatile, high-performance cartridge for this turntable – performance that other turntables in this class simply can’t match.

Integrated into the J-shaped tonearm, the AT-VM95C cartridge with 0.6 conical stylus offers excellent channel separation and low distortion for outstanding tonal quality. And the stylus can also be easily upgraded with any of the other styli (elliptical, microlinear, or Shibata) in our VM95 Series, offering customization that is normally only possible on a turntable with a detachable headshell and cartridge.

The easy-to-use AT-LP70XBT plays both 33-1/3 and 45 RPM records and, in addition to its Bluetooth wireless technology, has a built-in switchable phono preamp that allows the turntable to also be connected directly to a home stereo, powered speakers, computer or other component, whether that component has a dedicated phono input or not. The three-piece, anti-resonance chassis provides a solid foundation that dampens unwanted noise for improved sound quality. Noise is further reduced by the inclusion of an AC adapter that moves the AC/DC conversion outside of the chassis to limit its impact on the signal chain.

The turntable comes with a detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable hinged dust cover, and is available in three color schemes: Black/Silver, Black/Bronze, and White/Silver.

Features:

• Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
• High-fidelity audio with Bluetooth wireless technology
• Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology or to wired audio systems and powered speakers via included dual RCA output cable
• Compatible with the high-quality Qualcomm® aptX™ Adaptive audio codec
• A fixed-body AT-VM95C Integral Dual Moving Magnet™ phono cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Stylish three-piece chassis construction dampens resonance for improved sound quality*
• J-shaped tonearm is engineered to minimize tracking errors
• Tonearm lock reduces risk of stylus damage
• Built-in switchable phono/line pre-amplifier
• Anti-resonance, die-cast aluminum platter with felt mat
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
• Includes detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable hinged dust cover
• Available in Black/Silver, Black/Bronze, and White/Silver

*Compared to AT-LP60X.

Specifications:

Communication specifications:

• Communication system: Bluetooth version 5.2
• RF output: 2.5 mW EIRP
• Maximum communication range: Line of sight - approx. 10 m (33')
• Frequency band: 2.402 GHz to 2.480 GHz
• Modulation method: GFSK, Pi/4DQPSK, 8DPSK
• Compatible Bluetooth profile: A2DP
• Supported codec: Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio, SBC

Turntable specifications:

• Motor: DC motor
• Drive method: Belt drive
• Speed: 33-1/3 RPM, 45 RPM
• Turntable platter: Die-cast aluminum
• Wow and flutter: < 0.25% (WTD)
• Signal-to-noise: ratio > 55 dB
• Output level: PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE: 252 mV nominal at 1 kHz, 5 cm/sec
• Phono pre-amp gain: 36 dB nominal, RIAA equalized

Tonearm specifications:

• Effective length: 220 mm (8.7”)
• Overhang: 18 mm (0.71”)
• Maximum tracking error angle: Less than 2.0°

Cartridge specifications:

(This product is equipped with an integrated AT-VM95C Dual Moving Magnet Stereo Cartridge. The cartridge cannot be removed. )

• Cartridge model: AT-VM95C
• Cartridge type: VM
• Recommended load impedance: 47,000 ohms
• Output voltage: 4.0 mV (mV at 1 kHz, 5 cm/sec)
• Stylus: 0.6 mil bonded conical
• Cantilever: Aluminum pipe

AC adapter:

• Type: FJ-SW1261200500DN
• Rated input voltage: 100 to 240 V AC
• Rated input current: 0.4 A max.
• Rated frequency: 50 Hz / 60 Hz
• Rated output voltage: 12 V DC
• Rated secondary current: 0.5 A
• Cable length: Approx. 1.5 m (4.9')

(The included AC adapter may differ depending on the country of sale. Check the rating label on the AC adapter. For details, contact your local Audio-Technica dealer.)

General specifications:

• Dimensions 400 mm (16”) × 330 mm (13”) × 110 mm (4.3”) (W × D × H)
• Weight Approx. 2.9 kg (6.4 lbs)
• Power consumption 1.6 W
• Replacement stylus (sold separately): AT-VMN95C
• Replacement belt (sold separately): AT-LP70X exclusive belt

Accessories:

• Dust cover
• Felt mat
• Platter (with drive belt)
• Dust cover hinges
• 45 RPM adapter
• RCA audio cable (Approx. 1.0 m (3.3'))
• AC adapter (Approx. 1.5 m (4.9'))
